此款減振器采用高強度天然橡膠材料生產，鐵件經過特殊表面處理，與橡膠粘結強度可達到40KG/C。具有良好的抗疲勞和耐久度，適用于各種小型電機、水泵、馬達、離心機等有振動的設備。安裝簡便、規格齊全。8MM-150MM的外徑尺寸能滿足各類型設備選裝。

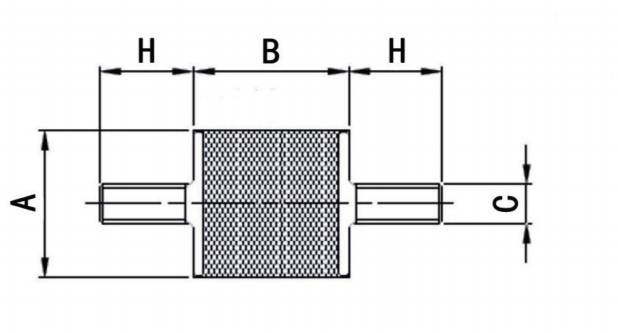

型號 |
A |
B | 螺絲 | 承載重量/KG | 最佳壓縮量 mm | ||
C | H | 40度 | 60度 | ||||
BKVV8*8 | 8 | 8 | M3 | 6\10 | 4 | 8 | 1.5 |
BKVV10*8 | 10 | 8 | M3 M4 | 6\10 | 5 | 10 | 1.5 |
BKVV10*10 | 10 | 10 | M3 M4 | 6\10 | 5 | 10 | 2 |
BKVV10*15 | 10 | 15 | M3 M4 | 6\10 | 5 | 10 | 2 |
BKVV15*8 | 15 | 8 | M3 M4 | 10\12\15 | 10 | 18 | 2 |
BKVV15*10 | 15 | 10 | M3 M4 | 10\12\15 | 10 | 18 | 2 |
BKVV15*15 | 15 | 15 | M3 M4 | 10\12\15 | 10 | 18 | 2 |
BKVV15*20 | 15 | 20 | M3 M4 | 10\12\15 | 10 | 18 | 2 |
BKVV15*30 | 15 | 30 | M3 M4 | 10\12\15 | 10 | 18 | 2 |
BKVV20*8 | 20 | 8 | M6 | 8\10\16 | 10 | 20 | 1.5 |
BKVV20*10 | 20 | 10 | M6 | 8\10\16 | 10 | 20 | 1.5 |
BKVV20*15 | 20 | 15 | M6 | 8\10\16 | 13 | 25 | 2 |
BKVV20*20 | 20 | 20 | M6 | 8\10\16 | 13 | 25 | 2 |
BKVV20*25 | 20 | 25 | M6 | 8\10\16 | 15 | 28 | 2 |
BKVV20*30 | 20 | 30 | M6 | 8\10\16 | 22 | 35 | 2.5 |
BKVV25*10 | 25 | 10 | M6 M8 | 10\15\23 | 13 | 25 | 1.5 |
BKVV25*15 | 25 | 15 | M6 M8 | 10\15\23 | 17 | 33 | 2 |
BKVV25*20 | 25 | 20 | M6 M8 | 10\15\23 | 17 | 33 | 2 |
BKVV25*25 | 25 | 25 | M6 M8 | 10\15\23 | 17 | 33 | 2 |
BKVV25*30 | 25 | 30 | M6 M8 | 10\15\23 | 21 | 41 | 2.5 |
BKVV30*15 | 30 | 15 | M8 | 16\20\23 | 22 | 40 | 2 |
BKVV30*20 | 30 | 20 | M8 | 16\20\23 | 22 | 40 | 2 |
BKVV30*25 | 30 | 25 | M8 | 16\20\23 | 22 | 40 | 2 |
BKVV30*30 | 30 | 30 | M8 | 16\20\23 | 28 | 50 | 2.5 |
BKVV30*40 | 30 | 40 | M8 | 16\20\23 | 28 | 50 | 2.5 |
BKVV40*20 | 40 | 20 | M8 M10 | 16\20\23 | 26 | 48 | 2 |
BKVV40*25 | 40 | 25 | M8 M10 | 23\27 | 26 | 48 | 2 |
BKVV40*30 | 40 | 30 | M8 M10 | 23\27 | 32 | 60 | 2.5 |
BKVV40*40 | 40 | 40 | M8 M10 | 23\27 | 38 | 72 | 3 |
BKVV50*20 | 50 | 20 | M10 M12 | 23\27 | 30 | 56 | 2 |
BKVV50*25 | 50 | 25 | M10 M12 | 23\27\32 | 30 | 56 | 2 |
BKVV50*30 | 50 | 30 | M10 M12 | 23\27\32 | 38 | 70 | 2.5 |
BKVV50*35 | 50 | 35 | M10 M12 | 23\27\32 | 38 | 70 | 3 |
BKVV50*40 | 50 | 40 | M10 M12 | 23\27\32 | 45 | 85 | 3 |
BKVV50*45 | 50 | 45 | M10 M12 | 23\27\32 | 45 | 85 | 3 |
BKVV50*50 | 50 | 50 | M10 M12 | 23\27\32 | 45 | 85 | 2.5 |
BKVV60*30 | 60 | 60 | M10 M12 | 23\27\32 | 60 | 110 | 2.5 |
BKVV60*35 | 60 | 30 | M10 M12 | 27\32\37 | 60 | 110 | 2.5 |
BKVV60*40 | 60 | 40 | M10 M12 | 27\32\37 | 60 | 110 | 3 |
BKVV60*45 | 60 | 45 | M10 M12 | 27\32\37 | 72 | 132 | 3 |
BKVV60*50 | 60 | 50 | M10 M12 | 27\32\37 | 72 | 132 | 3 |
BKVV60*60 | 60 | 60 | M10 M12 | 27\32\37 | 72 | 132 | 3.5 |
BKVV70*65 | 70 | 65 | M12 M16 | 37\42 | 160 | 280 | 2 |
BKVV70*25 | 75 | 25 | M12 M16 | 37\42 | 100 | 180 | 3 |
BKVV70*40 | 75 | 40 | M12 M16 | 37\42 | 150 | 270 | 3 |
BKVV70*45 | 75 | 45 | M12 M16 | 37\42 | 150 | 270 | 3 |
BKVV70*50 | 75 | 50 | M12 M16 | 37\42 | 150 | 270 | 3.5 |
BKVV70*55 | 75 | 55 | M12 M16 | 37\42 | 175 | 315 | 3 |
BKVV80*40 | 80 | 40 | M12 M16 | 42\47 | 150 | 280 | 3 |
BKVV80*50 | 80 | 50 | M12 M16 | 42\47 | 175 | 280 | 3.5 |
BKVV80*60 | 80 | 60 | M12 M16 | 42\47 | 205 | 325 | 4 |
BKVV80*80 | 80 | 80 | M12 M16 | 42\47 | 235 | 370 | 2.5 |
BKVV100*30 | 100 | 30 | M12 M16 | 42\47 | 190 | 350 | 3 |
BKVV100*40 | 100 | 40 | M16 | 42\47 | 230 | 420 | 3 |
BKVV100*45 | 100 | 45 | M16 | 42\47 | 230 | 420 | 3 |
BKVV100*50 | 100 | 50 | M16 | 42\47 | 230 | 420 | 3 |
BKVV100*55 | 100 | 55 | M16 | 42\47 | 270 | 490 | 3.4 |
BKVV100*60 | 100 | 60 | M16 | 42\47 | 310 | 560 | 4 |
BKVV100*75 | 100 | 75 | M16 | 42\47 | 310 | 560 | 4 |
BKVV100*100 | 100 | 100 | M16 | 42\47 | 390 | 700 | 5 |
BKVV159*75 | 159 | 75 | M16 M20 | 42\47 | 750 | 1400 | 5 |
