Rubber Mounts

Current location:Home --> BKDE Type Rubber Mounts

BKDE Type Rubber Mounts

Product Description:

Application:Crane Dump Truck Offroad Vehicle Suspension Vehicle Handling EquipmentTypeABScrewweight/KGcompression（mm）C40degree60dereeBKDE8*888M3481.5BKDE10*101010M3 M45102BKDE10*151015M3 M45102BKDE15*101510M3 M410182BKDE15*151515M3 M510182BKDE15*201520M4 M510182BKDE15*301530M4 M510182BKDE20*102010M610201.5BKDE20*152015M613252BKDE20*202020M613252BKDE20*2520…

MASSAGE CONTACT

Introduction

Application:

Crane Dump Truck Offroad Vehicle Suspension Vehicle Handling Equipment

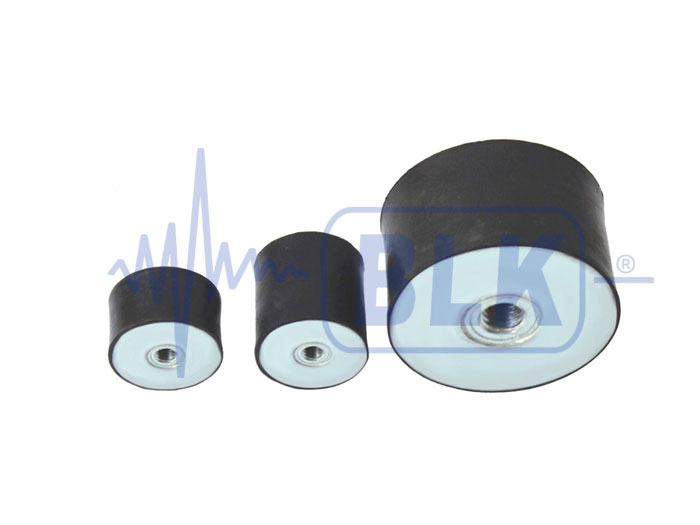

BKDE Type Rubber Mounts

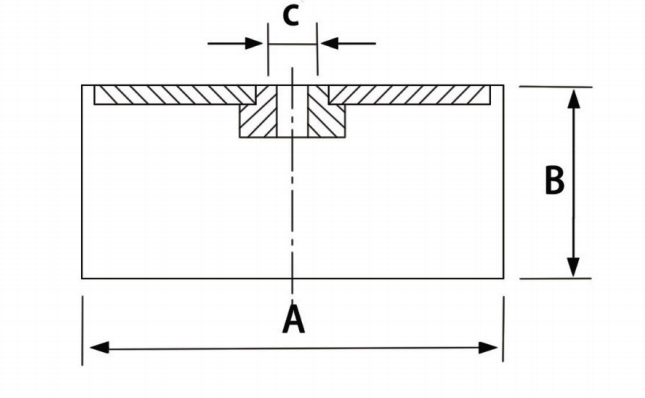

Type	A	B	Screw	weight /KG		compression （mm）
Type	A	B	C	40degree	60deree	compression （mm）
BKDE8*8	8	8	M3	4	8	1.5
BKDE10*10	10	10	M3 M4	5	10	2
BKDE10*15	10	15	M3 M4	5	10	2
BKDE15*10	15	10	M3 M4	10	18	2
BKDE15*15	15	15	M3 M5	10	18	2
BKDE15*20	15	20	M4 M5	10	18	2
BKDE15*30	15	30	M4 M5	10	18	2
BKDE20*10	20	10	M6	10	20	1.5
BKDE20*15	20	15	M6	13	25	2
BKDE20*20	20	20	M6	13	25	2
BKDE20*25	20	25	M6	15	28	2
BKDE20*30	20	30	M6	22	35	2.5
BKDE25*15	25	15	M6 M8	17	33	2
BKDE25*20	25	20	M6 M8	17	33	2
BKDE25*25	25	25	M6 M8	17	33	2
BKDE25*30	25	30	M6 M8	21	41	2.5
BKDE30*15	30	15	M8	22	40	2
BKDE30*20	30	20	M8	22	40	2
BKDE30*25	30	25	M8	22	40	2
BKDE30*30	30	30	M8	28	50	2.5
BKDE30*40	30	40	M8	28	50	2.5
BKDE40*20	40	20	M8 M10	26	48	2
BKDE40*25	40	25	M8 M10	26	48	2
BKDE40*30	40	30	M8 M10	32	60	2.5
BKDE40*40	40	40	M8 M10	38	72	3
BKDE50*20	50	20	M10 M12	30	56	2
BKDE50*25	50	25	M10 M12	30	56	2
BKDE50*30	50	30	M10 M12	38	70	2.5
BKDE50*35	50	35	M10 M12	38	70	2.5
BKDE50*40	50	40	M10 M12	45	85	3
BKDE50*45	50	45	M10 M12	45	85	3
BKDE50*50	50	50	M10 M12	45	85	3
BKDE60*30	60	30	M10 M12	60	110	2.5
BKDE60*35	60	35	M10 M12	60	110	2.5
BKDE60*40	60	40	M10 M12	60	110	2.5
BKDE60*45	60	45	M10 M12	72	132	3
BKDE60*50	60	50	M10 M12	72	132	3
BKDE60*60	60	60	M10 M12	72	132	3
BKDE70*30	70	30	M12 M16	110	200	2.5
BKDE70*40	70	40	M12 M16	135	240	3
BKDE70*45	70	45	M12 M16	135	240	3
BKDE70*50	70	50	M12 M16	135	240	3
BKDE70*55	70	55	M12 M16	160	280	3.5
BKDE70*65	70	65	M12 M16	160	280	3.5
BKDE70*25	75	25	M12 M16	100	180	2
BKDE70*40	75	40	M12 M16	150	270	3
BKDE70*45	75	45	M12 M16	150	270	3
BKDE70*50	75	50	M12 M16	150	270	3
BKDE70*55	75	55	M12 M16	175	315	3.5
BKDE80*40	80	40	M12 M16	150	280	3
BKDE80*50	80	50	M12 M16	175	280	3
BKDE80*60	80	60	M12 M16	205	325	3.5
BKDE80*80	80	80	M12 M16	235	370	4
BKDE100*30	100	30	M12 M16	190	350	2.5
BKDE100*40	100	40	M12 M16	230	420	3
BKDE100*45	100	45	M12 M16	230	420	3
BKDE100*50	100	50	M12 M16	230	420	3
BKDE100*55	100	55	M12 M16	230	490	3.5
BKDE100*60	100	60	M12 M16	310	560	4
BKDE100*75	100	75	M12 M16	310	560	4
BKDE100*100	100	100	M12 M16	390	700	5
BKDE150*75	150	75	M12 M16	750	1400	5
