BKDD Type Rubber Mounts

Product Description:

Elastic element: RubberMetal parts: White galvanized steel UN-IS2081Applicable environment: -40~120°CUses: Centrifuge industrial fans, all types of pump body, electric motor frequency converter good people compressors and other speeds in the 1200 rev / min or more equipment can be used.型號AB螺絲承載重量/KG最佳壓縮量mmC40度60度BKDD10*101010M35102BKDD10*15101…

MASSAGE CONTACT

Introduction

Elastic element: Rubber

Metal parts: White galvanized steel UN-IS2081
Applicable environment: -40~120°C
Uses: Centrifuge industrial fans, all types of pump body, electric motor frequency converter good people compressors and other speeds in the 1200 rev / min or more equipment can be used.

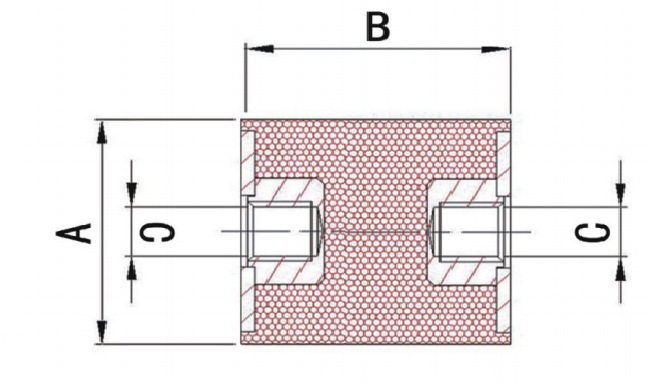

BKDD Type Rubber Mounts

型號	A	B	螺絲	承載重量/KG		最佳壓縮量 mm
型號	A	B	C	40度	60度	最佳壓縮量 mm
BKDD10*10	10	10	M3	5	10	2
BKDD10*15	10	15	M3 M4	5	10	2
BKDD15*15	15	15	M3 M4	10	18	2
BKDD15*20	15	20	M3 M4	10	18	2
BKDD15*30	15	30	M3 M5	10	18	2
BKDD20*15	20	15	M4 M5	13	25	2
BKDD20*20	20	20	M4 M5	13	25	2
BKDD20*25	20	25	M6	15	28	2
BKDD20*30	20	30	M6	22	35	2.5
BKDD25*20	25	20	M6	17	33	2
BKDD25*25	25	25	M6	17	33	2
BKDD25*30	25	30	M6	21	41	2.5
BKDD30*20	30	20	M6 M8	22	40	2
BKDD30*25	30	25	M6 M8	22	40	2
BKDD30*30	30	30	M6 M8	28	50	2.5
BKDD30*40	30	40	M6 M8	28	50	2.5
BKDD40*25	40	25	M8	26	48	2
BKDD40*30	40	30	M8	32	60	2.5
BKDD40*40	40	40	M8	38	72	3
BKDD50*25	50	25	M8	30	56	2
BKDD50*30	50	30	M8	38	70	2.5
BKDD50*35	50	35	M8 M10	38	70	2.5
BKDD50*40	50	40	M8 M10	45	85	3
BKDD50*45	50	45	M8 M10	45	85	3
BKDD50*50	50	50	M8 M10	45	85	3
BKDD60*30	60	30	M10 M12	60	110	2.5
BKDD60*35	60	35	M10 M12	60	110	2.5
BKDD60*40	60	40	M10 M12	60	110	2.5
BKDD60*45	60	45	M10 M12	72	132	3
BKDD60*50	60	50	M10 M12	72	132	3
BKDD60*60	60	60	M10 M12	72	132	3
BKDD70*40	70	40	M10 M12	135	240	3
BKDD70*45	70	45	M10 M12	135	240	3
BKDD70*50	70	50	M10 M12	135	240	3
BKDD70*55	70	55	M10 M12	160	280	3.5
BKDD70*65	70	65	M10 M12	160	280	3.5
BKDD75*40	75	40	M10 M12	150	270	3
BKDD75*45	75	45	M10 M12	150	270	3
BKDD75*50	75	50	M12 M16	150	270	3
BKDD75*55	75	55	M12 M16	175	315	3.5
BKDD80*40	80	40	M12 M16	150	280	3
BKDD80*50	80	50	M12 M16	175	280	3
BKDD80*60	80	60	M12 M16	205	325	3.5
BKDD80*80	80	80	M12 M16	235	370	4
BKDD100*30	100	30	M12 M16	190	350	2.5
BKDD100*40	100	40	M16	230	420	3
BKDD100*45	100	45	M16	230	420	3
BKDD100*50	100	50	M16	230	420	3
BKDD100*55	100	55	M16	270	490	3.5
BKDD100*60	100	60	M16	310	560	4
BKDD100*76	100	76	M16	310	560	4
BKDD100*100	100	100	M16	390	700	5
BKDD150*75	150	75	M16 M20	750	1400	5
