This type of shock absorber can achieve high damping effect in axial and lateral pressures, especially for generators, engines and systems. The damper works well and its application range is about 25HZ (1500rpm). Internal rubber and iron pieces are completely glued together to provide the best vibration damping effect, and safety lock parts are attached to ensure safety. This type of shock absorber has a small amount of rubber compression and a large load, and is suitable for motors of 1500-3500 rpm.
Elastic element: RubberThis shock absorber can simultaneously withstand the effects of pressure and shear forces. The rubber is firmly bonded by vulcanization and the bottom galvanized steel sheet. When the stability of machinery and equipment is a priority, we need to choose this type of shock absorber.

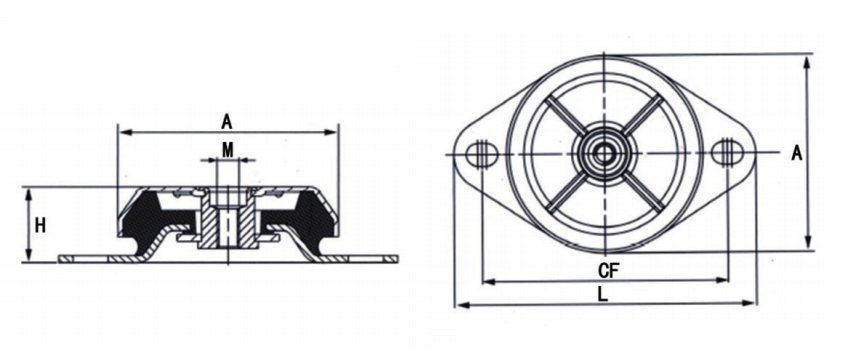

Type | Average kg/mm | weight kg | Maximum compression mm | ||||||
BKH633008W | 40 | 63 | 30 | M8 | 89 | 110 | 70 | 140 | 2 |
BKH633008M | 60 | 63 | 30 | M8 | 89 | 110 | 120 | 240 | 2 |
BKH633010W | 40 | 63 | 30 | M10 | 89 | 110 | 70 | 140 | 2 |
BKH633010M | 60 | 63 | 30 | M10 | 89 | 110 | 120 | 240 | 2 |
BKH783010W | 40 | 78 | 30 | M10 | 11 | 135 | 47 | 108 | 2.3 |
BKH783010M | 60 | 78 | 30 | M10 | 11 | 135 | 116 | 267 | 2.3 |
BKH783012W | 40 | 78 | 30 | M12 | 110 | 135 | 47 | 108 | 2.3 |
BKH783012M | 60 | 78 | 30 | M12 | 110 | 135 | 116 | 267 | 2.3 |
BKH833010W | 40 | 83 | 30 | M10 | 110 | 135 | 65 | 130 | 2 |
BKH833010M | 60 | 83 | 30 | M10 | 110 | 135 | 98 | 196 | 2 |
BKH833012W | 40 | 83 | 30 | M10 | 110 | 135 | 65 | 130 | 2 |
BKH833012M | 60 | 83 | 30 | M10 | 110 | 135 | 98 | 196 | 2 |
BKH923510W | 40 | 92 | 35 | M10 | 123.5 | 150 | 50 | 175 | 3.5 |
BKH923510M | 60 | 92 | 35 | M10 | 123.5 | 150 | 90 | 315 | 3.5 |
BKH923512W | 40 | 92 | 35 | M12 | 123.5 | 150 | 50 | 175 | 3.5 |
BKH923512M | 60 | 92 | 35 | M12 | 123.5 | 150 | 90 | 315 | 3.5 |
BKH1063812W | 40 | 106 | 38 | M12 | 143 | 175 | 70 | 252 | 3.6 |
BKH1063812M | 60 | 106 | 38 | M12 | 143 | 175 | 150 | 450 | 3 |
BKH1063816W | 40 | 106 | 38 | M16 | 143 | 175 | 70 | 252 | 3.6 |
BKH1063816M | 60 | 106 | 38 | M16 | 143 | 175 | 150 | 450 | 3 |
BKH1254316W | 40 | 125 | 43 | M16 | 156 | 192 | 88 | 352 | 4 |
BKH1254316M | 60 | 125 | 43 | M16 | 156 | 192 | 185 | 740 | 4 |
BKH1505016W | 40 | 150 | 50 | M16 | 182 | 218 | 120 | 720 | 6 |
BKH1505016M | 60 | 150 | 50 | M16 | 182 | 218 | 220 | 1320 | 6 |
BKH1505020W | 40 | 150 | 50 | M20 | 182 | 218 | 120 | 720 | 6 |
BKH1505020M | 60 | 150 | 50 | M20 | 182 | 218 | 220 | 1320 | 6 |
