    BK-A Type Air  Mounts
    BK-A Type Air Mounts
    Product Description:
    Characteristic:? Pneumatic anti-vibration device, in line with JISD-4101 pressure test standard.? Natural frequency 3Hz~5Hz, maximum use pressure 4.5kg/cm^2.? The body adopts Neoprene Rubber, and the integral molding has good air tightness.? Anti-vibration effect is extremely high, the general equipment efficiency can reach above 97%.? Load range 50~900…
    MASSAGECONTACT
    Introduction


    Characteristic:
    ? Pneumatic anti-vibration device, in line with JISD-4101 pressure test standard.
    ? Natural frequency 3Hz~5Hz, maximum use pressure 4.5kg/cm^2.
    ? The body adopts Neoprene Rubber, and the integral molding has good air tightness.
    ? Anti-vibration effect is extremely high, the general equipment efficiency can reach above 97%.
    ? Load range 50~9000 kg.
    ? Oil caps can be added to prevent general oil corrosion.

    Application:

    ? General punch, air compressor, chiller, pump.

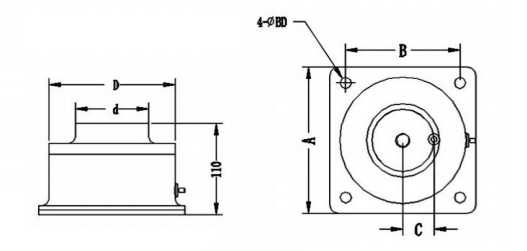

    BK-A Type Air  Mounts

    model

    Load range

    Kg

    size(mm

    bolt

    A

    B

    C

    ΦD

    Φd

    ΦBD

    BK-A-090

    50-100

    125

    100

    0

    100

    50

    12

    M10

    BK-A-150

    100-200

    125

    100

    0

    100

    60

    12

    M12

    BK-A-300

    200-400

    160

    125

    0

    138

    90

    12

    M12

    BK-A-600

    400-700

    200

    160

    0

    164

    110

    12

    M12

    BK-A-800

    700-900

    220

    180

    0

    191

    132

    14

    M16

    BK-A-1100

    900-1200

    250

    200

    0

    212

    150

    14

    M16

    BK-A-1500

    1200-1600

    300

    250

    0

    263

    190

    14

    M16

    BK-A-1900

    1600-2000

    350

    300

    0

    314

    240

    14

    M16

    BK-A-2700

    2000-2800

    400

    350

    90

    353

    270

    16

    M20

    BK-A-3400

    2800-3500

    500

    450

    90

    412

    330

    16

    M20

    BK-A-5900

    3500-6000

    530

    470

    125

    502

    390

    20

    M24

    BK-A-8900

    6000-9000

    650

    590

    150

    602

    490

    20

    M24
