    Current location:Home --> MC Type Spring Mounts
    MC Type Spring Mounts
    MC Type Spring Mounts
    Product Description:
    Characteristic:? The springs are designed with low natural frequencies and treated with ED and paint.? The springs are heat treated and stress relieved for long service life.? The body is treated with Dak rust.? Bottom anti-skid and anti-chattering bolt design, high safety.? It is simple to install and can adjust height and level according to actual nee…
    MASSAGECONTACT
    Introduction

    Characteristic:

    ? The springs are designed with low natural frequencies and treated with ED and paint.
    ? The springs are heat treated and stress relieved for long service life.
    ? The body is treated with Dak rust.
    ? Bottom anti-skid and anti-chattering bolt design, high safety.
    ? It is simple to install and can adjust height and level according to actual needs.
    ? It can eliminate mechanical structural vibration and protect and extend the mechanical life.
    ? The load deflection is 25mm.

    Application:

    ? All kinds of heavy machinery.
    ? Ice main unit, cooling tower
    ? fire pump, exhaust fan.
    ? Generators, air compressors.

    MC Type Spring Mounts

    model



    Load range

    kg



    Coefficient of spring

    Kg/mm



    Applicable deflection

    mm

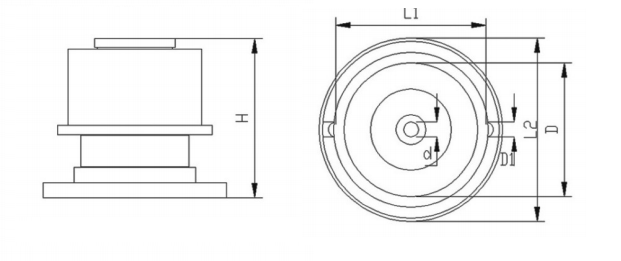

    size mm



    H



    D



    L1



    L2



    d



    D1

    MC-030

    20-30

    1.2

    25

    105

    103

    100

    120

    12

    10

    MC-050

    30-50

    2.0

    25

    105

    103

    100

    120

    12

    10

    MC-070

    50-80

    2.8

    25

    105

    103

    100

    120

    12

    10

    MC-090

    80-100

    3.6

    25

    105

    103

    100

    120

    12

    10

    MC-120

    100-130

    4.8

    25

    105

    103

    100

    120

    12

    10

    MC-150

    130-150

    6.0

    25

    105

    103

    100

    120

    12

    10

    MC-180

    150-180

    7.2

    25

    110

    103

    100

    120

    12

    10

    MC-250

    200-250

    10.0

    25

    110

    103

    100

    120

    12

    10

    MC-350

    250-350

    14.0

    25

    110

    103

    100

    120

    12

    10

    MC-480

    460-500

    19.2

    25

    110

    140

    135

    165

    14

    14

    MC-640

    600-650

    25.6

    25

    110

    140

    135

    165

    14

    14
